Product Detail

Share to:

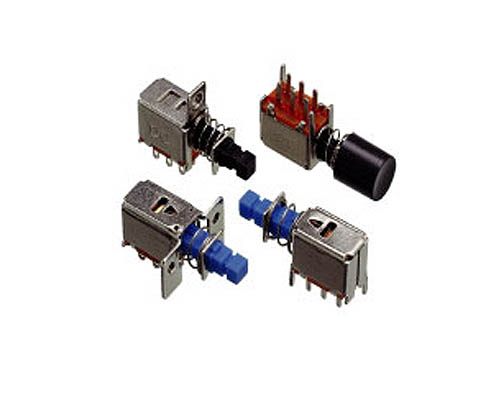

Push Button Switch

Quantity:

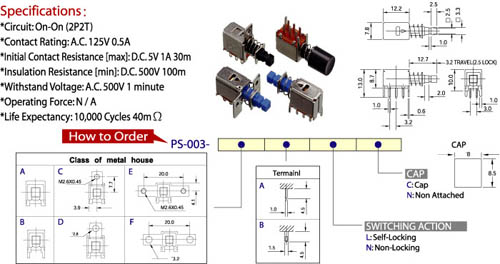

  • PS-003
*Circuit: On-On (2P2T)
*Contact Rating: A.C. 125V 0.5A
*Initial Contact Resistance [max]: D.C. 5V 1A 30MΩ
*Insulation Resistance [min]: D.C. 500V 100MΩ
*Withstand Voltage: A.C. 500V 1 minute
*Operating Force: N / A
*Life Expectancy: 10,000 Cycles 40MΩ

Place of Origin: Taiwan, ,,,,, ,,,,
Sales Method: Export, Manufacture
Payment Term: T/T
