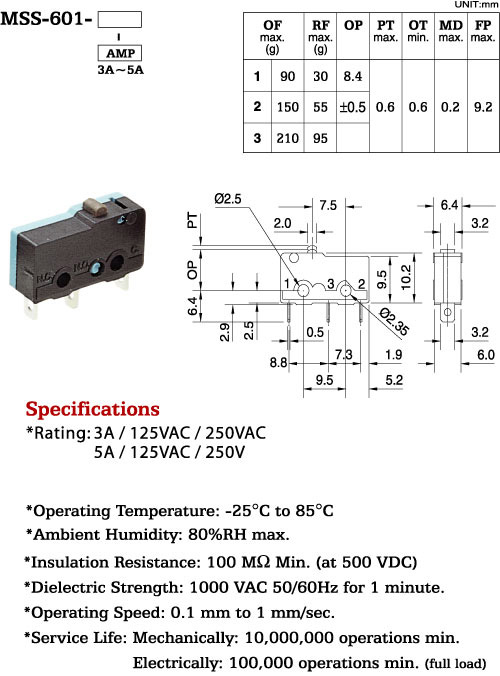

*Ratng: 3A / 125VAC / 250VAC
5A / 125VAC / 250VAC
10A / 125VAC / 250VAC
15A / 125VAC / 250VAC
* Operating Temperature: -25°C to 85°C
*Ambient Humidity: 80%RH max.
*Insulation Resistance:100 MΩ Min.( at 500 VDC)
*Dielectric Strength: 1000 VAC 50/60Hz for 1 Minute.
*Operating Speed: 0.1mm to 1mm/sec.
*Service Life: Mechanically: 10,000,000 operations min.
Electricallya; 100,000 operations min.(full load)
Place of Origin: Taiwan, ,,,,,, ,,,,,
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T
