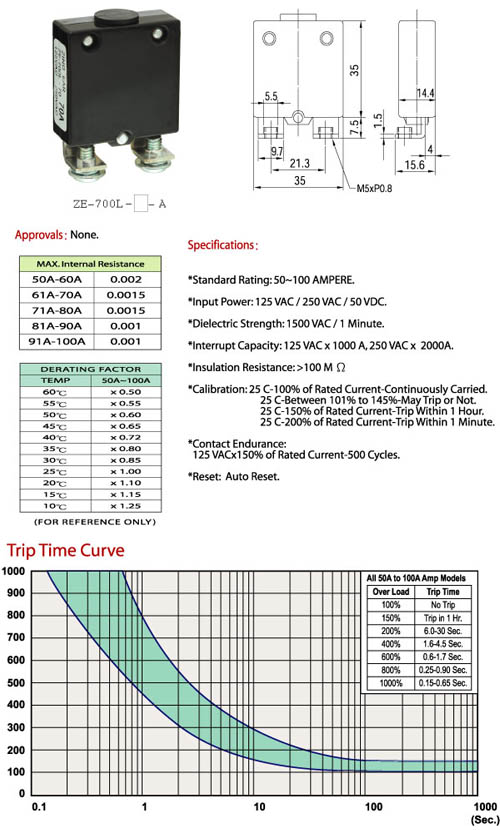

*Standard Rating: 50~100 AMPERE.
*Input Power: 125 VAC / 250 VAC / 50 VDC.
*Dielectric Strength: 1500 VAC / 1 Minute.
*Interrupt Capacity: 125 VACx1000 A, 250 VACx 2000 A.
*Insulation Resistance: >100 MΩ
*Calibration: 25°C-100% of Rated Current-Continuously Carried.
25°C- Between 101% to 145%-May Trip or Not.
25°C-150% of Rated Current-Trip Within 1 Hour.
25°C-200% of Rated Current-Trip Within 1 Minute.
*Contact Endurance:
125 VACx150% of Rated Current-500 Cycles.
*Reset:Manual Push Reset/Auto Reset.
Place of Origin: Taiwan, ,,,,,,, ,,,,,,
Sales Method: Export, Manufacture
