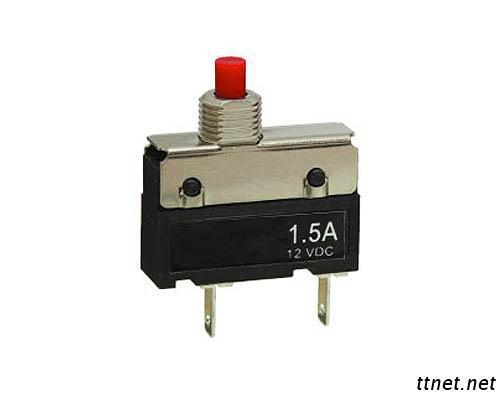

Circuit Breaker

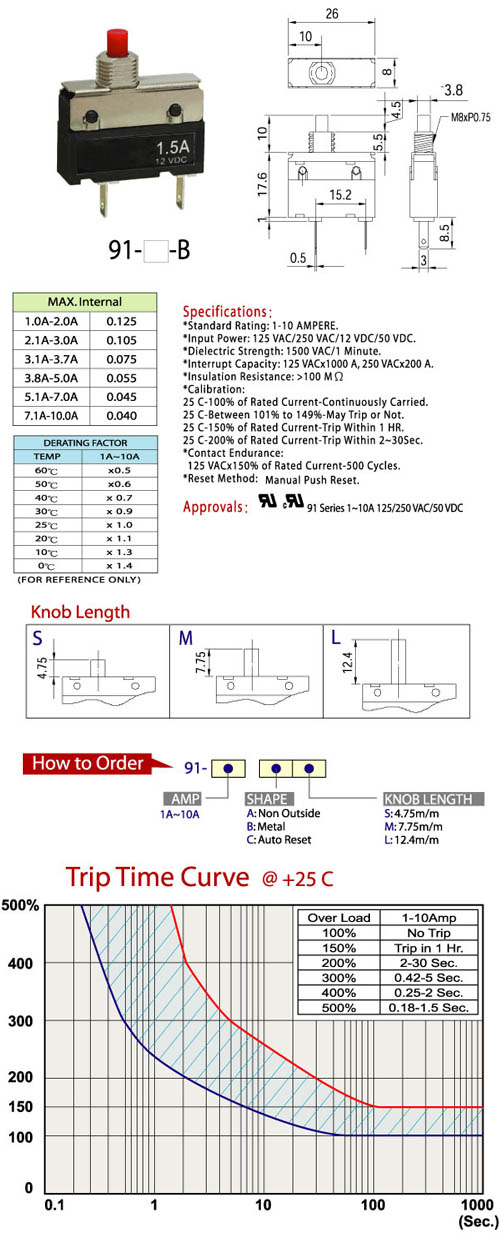

  • 91-B
*Standard Rating: 1~10 AMPERE.
*Input Power: 125 VAC / 250 VAC /12 VDC/50 VDC.
*Dielectric Strength: 1500 VAC / 1 Minute.
*Interrupt Capacity: 125 VAC x1000 A, 250 VAC x 200 A.
*Insulation Resistance: >100 MΩ
*Calibration: 25°C-100% of Rated Current-Continuously Carried.
25°C- Between 101% to 149%-May Trip or Not.
25°C-150% of Rated Current-Trip Within 1 Hour.
25°C-200% of Rated Current-Trip Within 2~30Sec.
*Contact Endurance:
125 VACx150% of Rated Current-500 Cycles.
*Reset Method: Auto Reset. or Manual Push Reset.

Place of Origin: Taiwan, Tainan, ,,,,,,,, ,,,,,,,
Sales Method: Export, Manufacture, Wholesale, OEM/ODM
Payment Term: T/T
