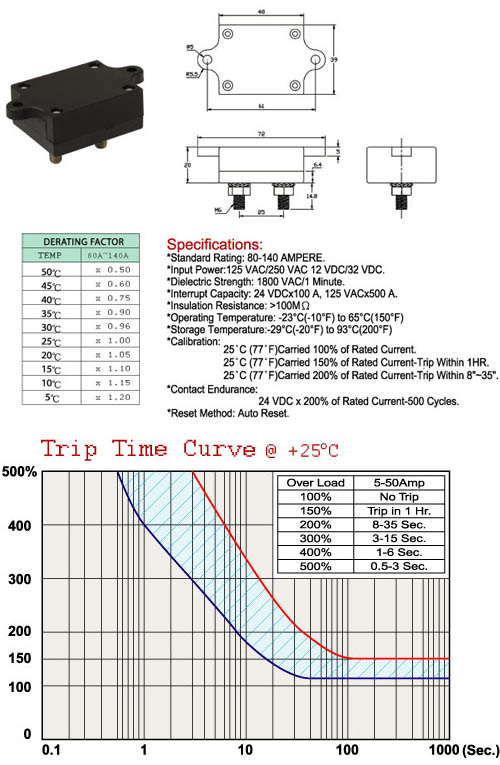

*Standard Rating: 80~140 AMPERE.
*Input Power: 125 VAC / 250 VAC / 24 VDC / 32 VDC.
*Dielectric Strength: 1800 VAC / 1 Minute.
*Interrupt Capacity: 24 VDCx100A,125 VAC x 500 A.
*Insulation Resistance: >100 MΩ
*Operating Temperature: -23°C(-10°F) to 65°C(150°F)
*Storage Temperature: -29°C(-20°F) to 93°C(200°F)
*Calibration: 25°C(77°F) Carried 100% of Rated Current.
25°C(77°F) Carried 150% of Rated Current-Trip Within 1 Hour.
25°C(77°F) Carried 200% of Rated Current-Trip Within 8”~35”.
*Contact Endurance:
24 VDCx200% of Rated Current-500 Cycles.
*Reset Method: Auto Reset.
